Product description details / Product description

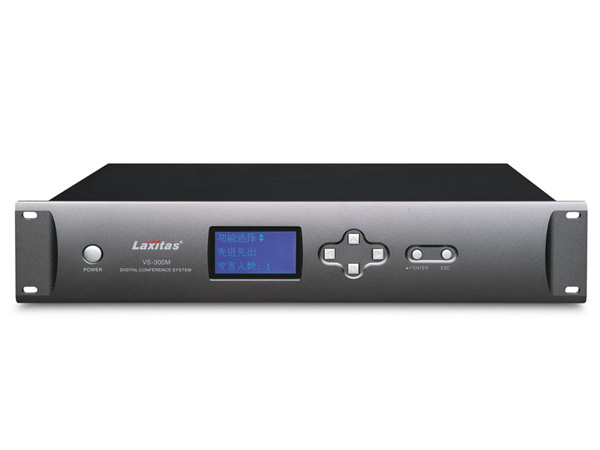

Host model: vs-320m, vs-370m, vs-390m
It has a variety of speech modes, such as FIFO, LIFO and voice controlled speech.
The system has delay closing and automatic closing modes to meet various needs.
The system host can be connected with 256 units and output in 4 channels.
Multiple hosts can be cascaded to realize the application of more units.
The unit is super strong and anti mobile phone interference.
The host computer of the system has RS232 serial port, which is convenient to connect with PC and other control equipment.
It has camera tracking function, supports a variety of camera protocols, and can set preset points through the host keyboard without computer adjustment.
The host has a 4-channel SD video switching interface and an RS232 serial port connected to the HD switcher.
The number of chairman can be set by computer software, and the maximum number of chairman units in a system can be up to 12
Multiple meeting modes can be realized without computer

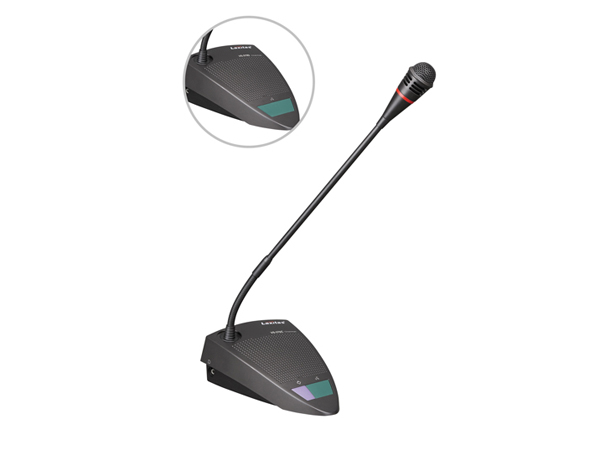

Chairman ex9100c and non voting ex9100d
(integrating speech and video tracking functions)
Using imported microphone and imported components, the sound quality is perfect!
*Single point condenser microphone;
*Microphone with red speech instructions;
*The microphone switch is equipped with two-color voice status indicating ring;
*Dual microphone input design (add clip microphone jack)
*It is equipped with 2.1. M 8p male cable, which is connected by hand between units;
*The microphone unit is provided with DC24 V power supply by the system host, which belongs to the safe range;
*Chairman unit is not limited by meeting mode and quantity, and can be placed in any position;
System technical parameters
Product Name: ex9100c / D
Input and output 8P-DIN × 1 (2m)
Input single directional condenser microphone
Working voltage: DC24 V (supplied by main engine)
Power loss: 40mA
Sensitivity - 47Db
SNR: 65dB
Frequency response: 100-10KHZ
Weight: 0.8kg
Size: 172 × 124 × 56mm
Color gray black
Mounting table type
Fixed with rod length of 400mm
