Product description details / Product description

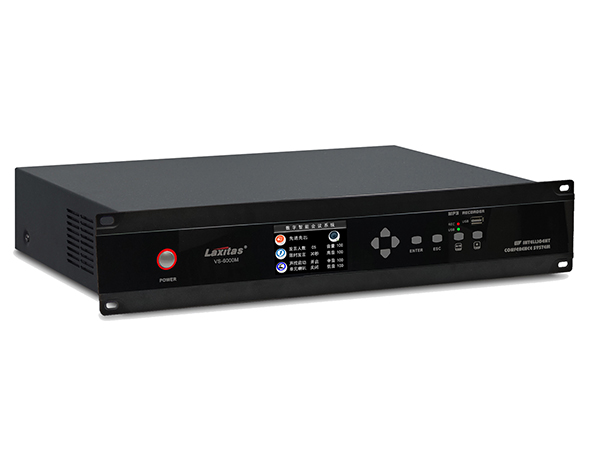

VS-6000M intelligent digital HD video conference system host
*International standard 2U panel size, can be installed in 19 inch standard cabinet, arc three-dimensional processing and organic glass matching design;
*It can be used without setting again after power on, and can restore factory settings;
*With voice activated microphone function and adjustable threshold level;
*It can be realized with the central control host, switch on and off of the central control microphone, switch conference mode, voice to text record, etc., and industrial RS232 interface;
*It adopts high-definition color 3.5-inch display screen, with Chinese and English menu language display options;
*Microphone total volume control, It can be unified off the microphone built-in speaker sound;
*All microphones have real-time display of the use status. When the indicator light is on, the microphone can be turned on or apply for speech;
*It has multi-channel microphone connection port for backup ring connection, four-way 8-core special conference unit connection port, four-way RJ45 network cable connection port, up to 60 conference system units can be connected, expansion host and power repeater can be connected, and 250 conference system units can be used at the same time;
*The panel is made of solid and durable aluminum alloy, CNC digital precision processing, and hard anodizing process on the surface, making it more hard, wear-resistant and corrosion-resistant;
*The built-in MP3 recording can support 32g USB storage at most. It can record 14 consecutive days of treble quality recording. It has multi-channel audio output. It can be connected with infrared translation system, telephone coupler, local sound reinforcement system, external recording equipment and remote multimedia terminal at the same time;
*The participants can set a time limit of 15 seconds to 60 minutes to quantify the meeting process and improve the efficiency of the meeting;
*The conference host can access up to 4 HD cameras, built-in 4-in-1-out HDMI HD seamless switching matrix, single screen switching without black screen, four pictures displayed on the same screen, up to 1080p60hz resolution, with multiple sets of RS-485 camera control interface, the communication distance can be up to 1km;
*Built in a variety of control camera protocols, PELCO-D, pelco-p, visca, you can directly set the preset point on the host panel without a computer;
*Intelligent conference speech mode to meet the needs of different types of meetings:
1: Intelligent limit: (i-limit) the number of units allowed to be opened at the same time can be set to 1-6. When the number of units reaches the limit, one person is allowed to apply for waiting for 30 seconds. When the microphone is turned on and turned off, the microphone will enter automatically in the application.
2: FIFO: the number of speech units is 1-6. After reaching the set number of speakers, turn on the microphone to cover the earliest one;
3: Intelligent application: (i-apply) when the applicant presses the microphone speaking button, the 30 second countdown of the application speech will be counted down, and the microphone pole light and microphone indicator light will flash, If the chairman presses the priority key to approve the opening of the microphone, press the priority key to approve one person at a time. The order of opening is determined by the application sequence. After the number of speakers reaches, 1 microphone is allowed to enter the application state, and finally the microphone will automatically cover the earliest opening unit (in this mode, the chairman's telephone has no temporary mute function for interposing)
4: Open mode: (free) the number of units opened at the same time is unlimited (please do not open more than 20 units at the same time for a long time)
5. Limited time speech: (speech time) the time limit for participants to speak is 15 seconds to 60 minutes, and the time can automatically turn off the microphone
6: Chairman only: (c-only) only the chairman's microphone is allowed to speak, and all representative units cannot be turned on
7: Voice activated: the unit is controlled by sound, and the voice threshold can be adjusted by the host computer
8: Automatic test: set the number of units to be tested, and after confirming the test, each microphone indicator and microphone indicator will flash for 2 seconds in order to complete the test and automatically reset the original state
System specifications
Product name vs-6000m main machine

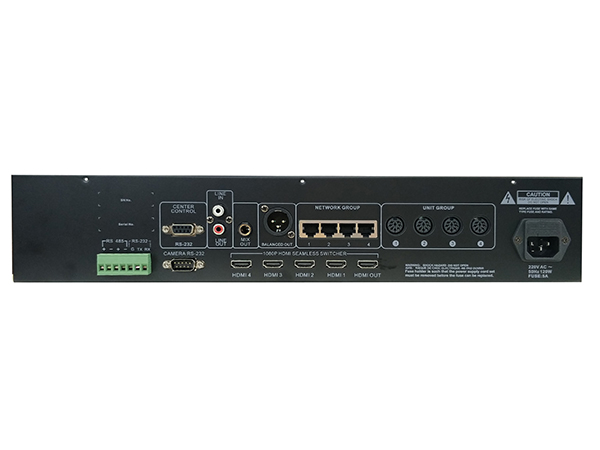

Input / output 8P-DIN × 4 RJ45 × 4
Input RCA × 1
Output xlrm × 1 (balanced) RCA × 1 6.35mm × 1
Video input / output 4 HDMI in / 1 HDMI out（ 1080P@60Hz )
Power supply AC220 V-50 Hz
Current drain 120W (max)
Frequency response 20Hz-20KHz
Signal to noise ratio Sn 78dB (1kHz thd1%)
Dimension 480 × 325 × 88mm
Weight 8.5Kg
Dark gray
Audio impedance line in line input: 50K Ω,
Line out line output: 200 Ω
Balance output: 300 Ω
Max out unbalanced output: 400 Ω
