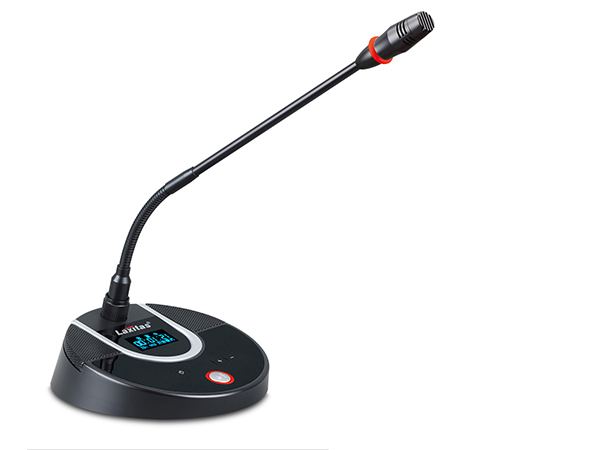

VS-6200C/D Intelligent Conference Chairman/Delegate unit
*Match with 2.1M connection cable，connect with connect box to hand in hand connected each unit.
*Inside work with DC24V power by Main machine, It’s safety for users. Also have mini extend power connecter.
*Unit-direction condenser microphone: goose neck microphone with red ring indicator LED.
*Open the microphone, Inside speaker automatically mute, and volume control key.
*With the blue OLED of 1.3 inch display screen menu of English, there is showing the meeting information, sate of the equipment, conference mode, ID number, speech countdown time, speaking time, open or off .
*The button of microphone using CAR level rubber button, Durability, opening red LED.
*Professional high fidelity, condenser microphones core, high directivity, Speaking distance can reach 10 to 40 cm with clear voice.
*Digital conference microphone support the third party central control for industrial RS232 communication protocol，it can be though central control to tracking and ON/OFF.
*Chairman could be shut down delegate, repress Priority Key Temporary Silence mute delegate, Release Priority delegate sound return back, also Chairman controls the microphone for approving applications.
SPECIFICATIONS
*Match with 2.1M connection cable，connect with connect box to hand in hand connected each unit.
*Inside work with DC24V power by Main machine, It’s safety for users. Also have mini extend power connecter.
*Unit-direction condenser microphone: goose neck microphone with red ring indicator LED.
*Open the microphone, Inside speaker automatically mute, and volume control key.
*With the blue OLED of 1.3 inch display screen menu of English, there is showing the meeting information, sate of the equipment, conference mode, ID number, speech countdown time, speaking time, open or off .
*The button of microphone using CAR level rubber button, Durability, opening red LED.
*Professional high fidelity, condenser microphones core, high directivity, Speaking distance can reach 10 to 40 cm with clear voice.
*Digital conference microphone support the third party central control for industrial RS232 communication protocol，it can be though central control to tracking and ON/OFF.
*Chairman could be shut down delegate, repress Priority Key Temporary Silence mute delegate, Release Priority delegate sound return back, also Chairman controls the microphone for approving applications.
SPECIFICATIONS
| NAME | VS-6200C/D MIC UNIT |
| input/output | 8P-DIN×1(Microphone line:2M) |
| input | Condenser Microphone |
| power supply | DC24V |
| current drain | 35mA |
| sensitivity | -47Db |
| s/n | 65Db |
| frequency response | 100-10KHZ |
| weight | 1.2kg |
| (W、D、H）dimension | 153×153×47mm |
| colors | Black |
| installation | Desktop |
| MIC Stem Length | 420mm (Activity) |
