Product description details / Product description

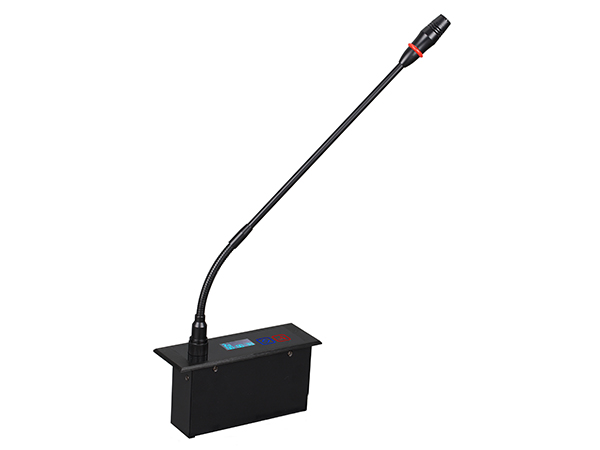

VS-6400C/D Intelligent Conference Chairman/Delegate unit
*Match with 2.1M connection cable or RJ45 net cable，connect with connect box to hand in hand connected each unit.
*Inside work with DC24V power by Main machine, It’s safety for users. Also have mini extend power connecter.
*Unit-direction condenser microphone: goose neck microphone with red ring indicator LED.
*With the blue OLED of 1.3 inch display screen menu of English, there is showing the meeting information, sate of the equipment, conference mode, ID number, speech countdown time, speaking time, open or off .
*The microphone unit uses an inductive touch switch, without mechanical sound, no fear of dust, blue standby background light. It can display whether the microphone is open in real time. When the status indicator light is on, the microphone can be opened, the microphone can not be opened or applied for speech when status indicator light is off.
*Professional high fidelity, condenser microphones core, high directivity, Speaking distance can reach 10 to 40 cm with clear voice.
*Digital conference microphone support the third party central control for industrial RS232 communication protocol，it can be though central control to tracking and ON/OFF.
*Chairman could be shut down delegate, repress Priority Key Temporary Silence mute delegate, Release Priority delegate sound return back, also Chairman controls the microphone for approving applications.
SPECIFICATIONS
*Match with 2.1M connection cable or RJ45 net cable，connect with connect box to hand in hand connected each unit.
*Inside work with DC24V power by Main machine, It’s safety for users. Also have mini extend power connecter.
*Unit-direction condenser microphone: goose neck microphone with red ring indicator LED.
*With the blue OLED of 1.3 inch display screen menu of English, there is showing the meeting information, sate of the equipment, conference mode, ID number, speech countdown time, speaking time, open or off .
*The microphone unit uses an inductive touch switch, without mechanical sound, no fear of dust, blue standby background light. It can display whether the microphone is open in real time. When the status indicator light is on, the microphone can be opened, the microphone can not be opened or applied for speech when status indicator light is off.
*Professional high fidelity, condenser microphones core, high directivity, Speaking distance can reach 10 to 40 cm with clear voice.
*Digital conference microphone support the third party central control for industrial RS232 communication protocol，it can be though central control to tracking and ON/OFF.
*Chairman could be shut down delegate, repress Priority Key Temporary Silence mute delegate, Release Priority delegate sound return back, also Chairman controls the microphone for approving applications.
SPECIFICATIONS
| NAME | VS-6400C/D MIC UNIT |
| input/output | 8P-DIN×1(Microphone line:2M) |
| input | Condenser Microphone |
| power supply | DC24V |
| current drain | 35mA |
| sensitivity | -47Db |
| s/n | 65Db |
| frequency response | 100-10KHZ |
| weight | 0.8kg |

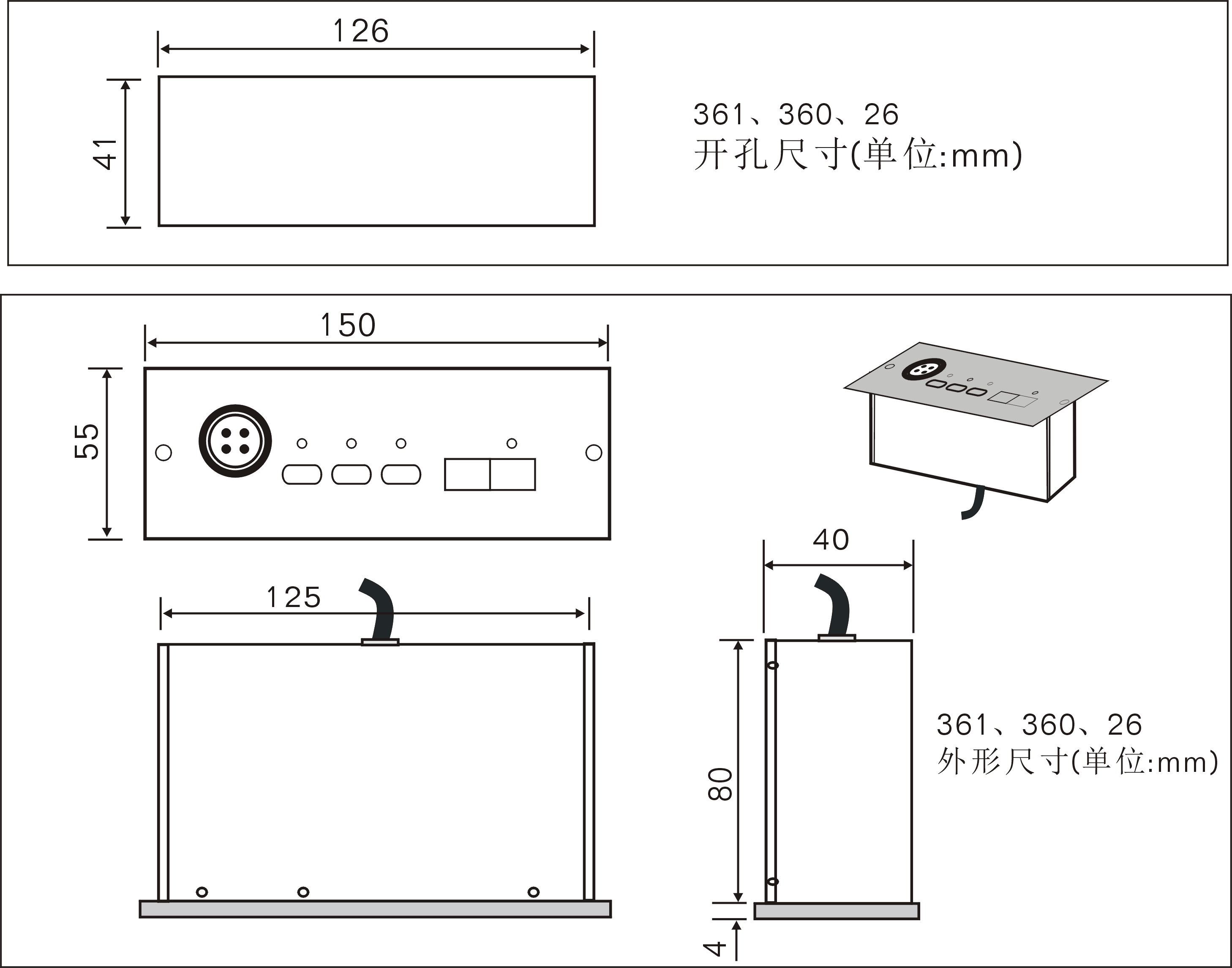

| (W、D、H）dimension | 150×55×94mm |
| colors | Black |
| installation | Embedded |
| MIC Stem Length | 420mm (Activity) |
